Safety Warning Fence
Safety Warning Fence is a protective facility used to isolate hazardous areas, widely applicable to construction sites such as construction sites and roads, to prevent accidents from occurring.
Product guide price: ＄0.99/㎡
PRODUCT DETAILS
Core functions
Isolate hazardous areasPrevent unrelated personnel from entering construction areas, deep pits, high-altitude falling object areas, etc.
Warning functionRemind pedestrians or vehicles to pay attention through reflective strips and prominent colors (yellow, black, red, white).
Guiding trafficStandardize the traffic routes for vehicles and pedestrians during road construction.
Anti collision bufferPartial fences (such as water horses) can absorb impacts and reduce accident injuries.
Specification and technical indicators of Safety Warning Fence
| Project RM | SR 50-50 | SR 100-100 |
|---|---|---|
| Nominal GSL/GSZ | 50 | 100 |
| Width m | 1m，1.2m(Customizable according to customer needs, with a maximum width of 6m) | |
| Length m | 15m，30m，50m(Customizable according to customer needs, unlimited length) | |

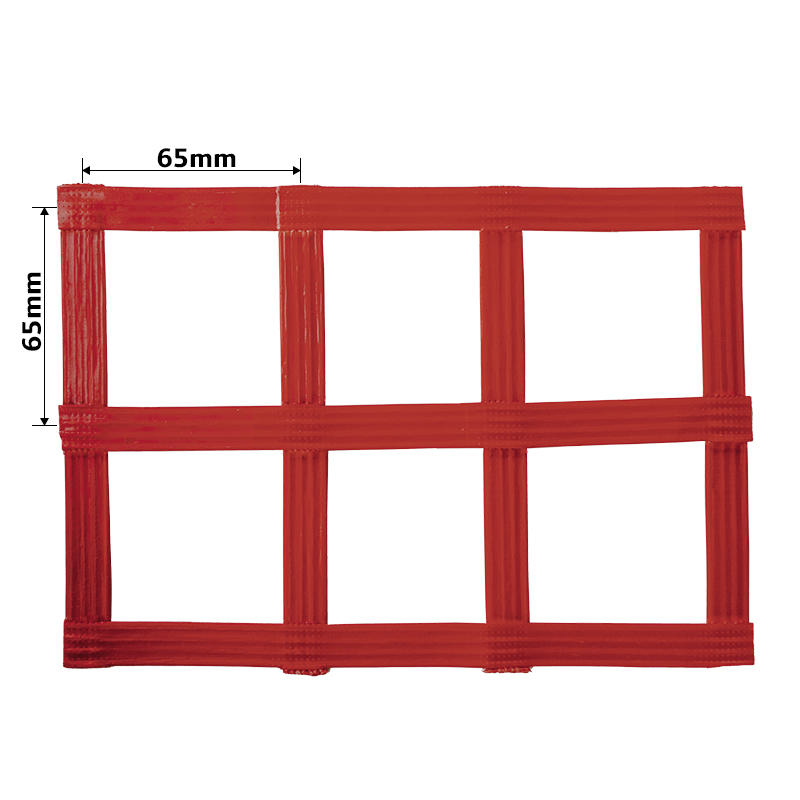

| Mesh size mm | 5cm，10cm(Size of the middle mesh) | |
| strength | Single tensile force ≥ 2.5KN, strength per linear meter ≥ 40KN/m | |
| colour | Black, Orange, Green(Can be customized according to customer needs) | |
| Ultimate tensile strength per linear meter in both longitudinal and transverse directions (kN/m) | ≥40KN/m | |
| Tensile strength at 2% elongation | 3-15 | |
| Tensile strength at 5% elongation | 5-25 | |
