Non-Woven Fabric Geocell
Non-Woven Fabric Geocell
★ 5.0 · 4 Reviews

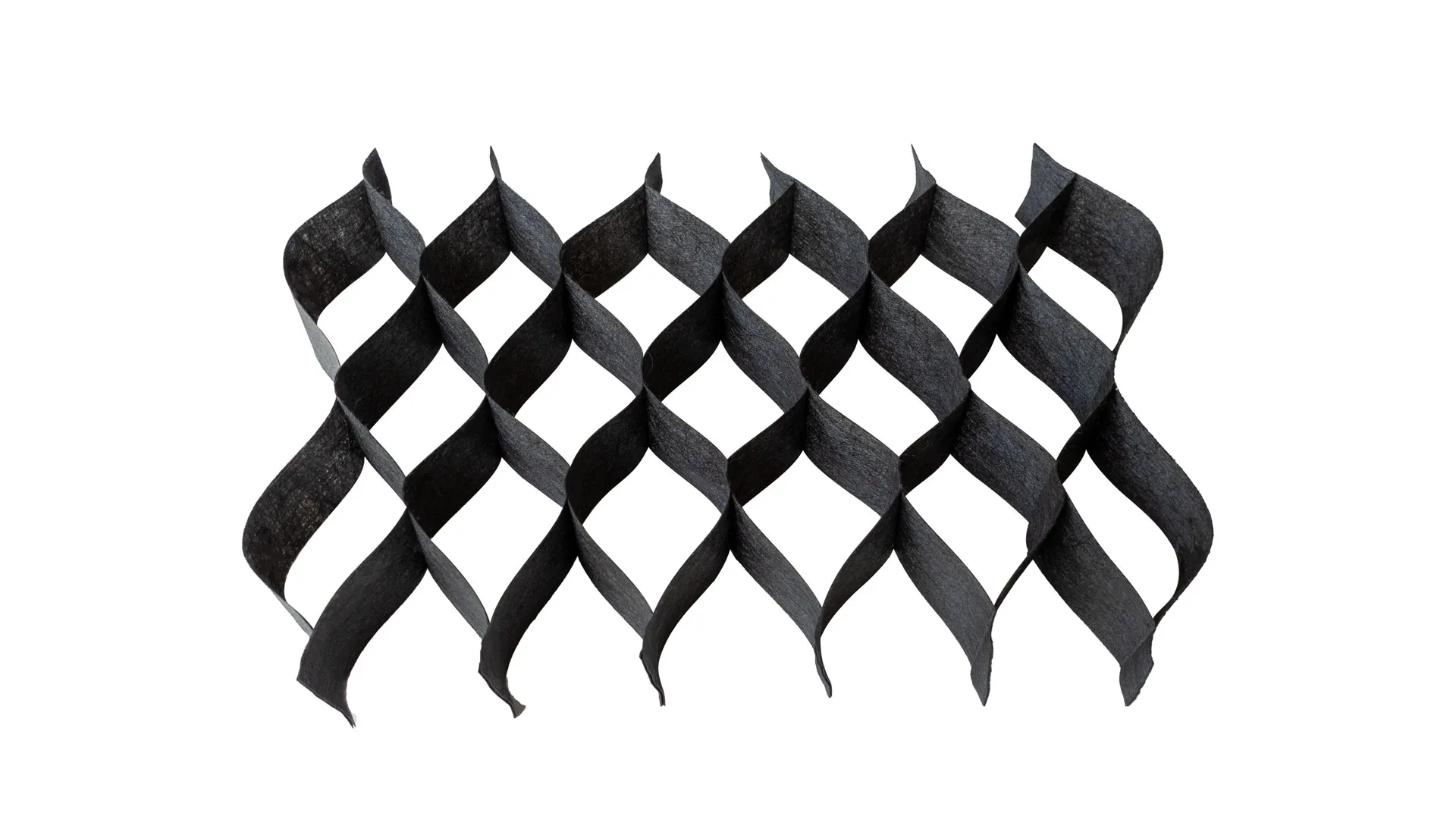

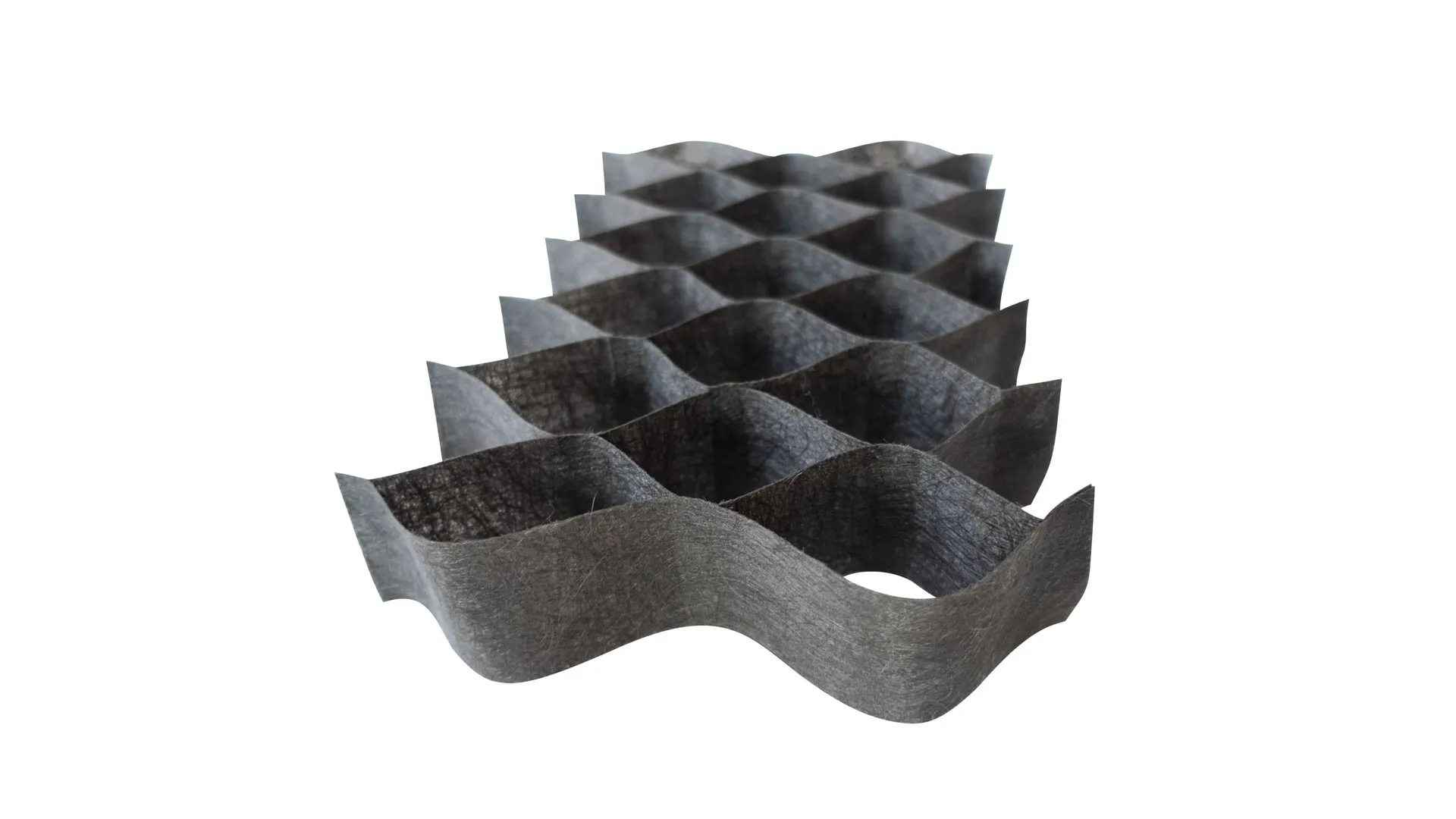

Jiangsu Ruimin's non-woven fabric geocell is a 3D cellular confinement system designed for superior soil stabilization and erosion control in civil engineering and construction projects. Made from high-quality non-woven geosynthetic material, it provides excellent drainage, durable performance, and reliable soil interlock. Perfect for road construction, slope protection, retaining walls, and ground reinforcement applications. Backed by our ISO-certified manufacturing and professional technical team, we deliver reliable geocell solutions for global projects.
Advanced 3D Cellular Confinement System
Integrating high-tenacity non-woven filament technology with 3D structural reinforcement for superior drainage and soil stabilization.
High-Polymer Material Technology
Manufactured from high-quality synthetic fibers including polyester and polypropylene.
- Long Filament Structure: Offers superior tensile strength compared to short-fiber alternatives.
- Chemical Resilience: Resistant to biological degradation and common soil chemicals.
- Multifunctional Integrity: Combines anti-seepage, filtration, and sealing in one structure.
Integrated Filtration & Drainage
Unlike plastic geocells, the non-woven walls allow for omnidirectional water flow.
- Effective Drainage: Prevents hydrostatic pressure buildup within the cell wall.
- Silt Protection: Acts as a high-performance filter to prevent soil erosion while allowing water passage.
- Anti-Seepage Effect: Optimized for channel lining and hydraulic engineering.
Superior Economic Efficiency
A cost-effective alternative to conventional stone and concrete reinforcement.
- Low Investment: Reduces material costs compared to traditional concrete structures.
- Rapid Deployment: Simple construction process leads to significantly shorter project periods.
- Channel Optimization: Enhances the effective utilization coefficient of water channels.
Reinforcement & Isolation
Provides rigid confinement for infill materials on soft foundation layers.
- Lateral Confinement: Prevents lateral movement of infill under heavy loads.
- Load Distribution: Effectively spreads vertical pressure across the subgrade.

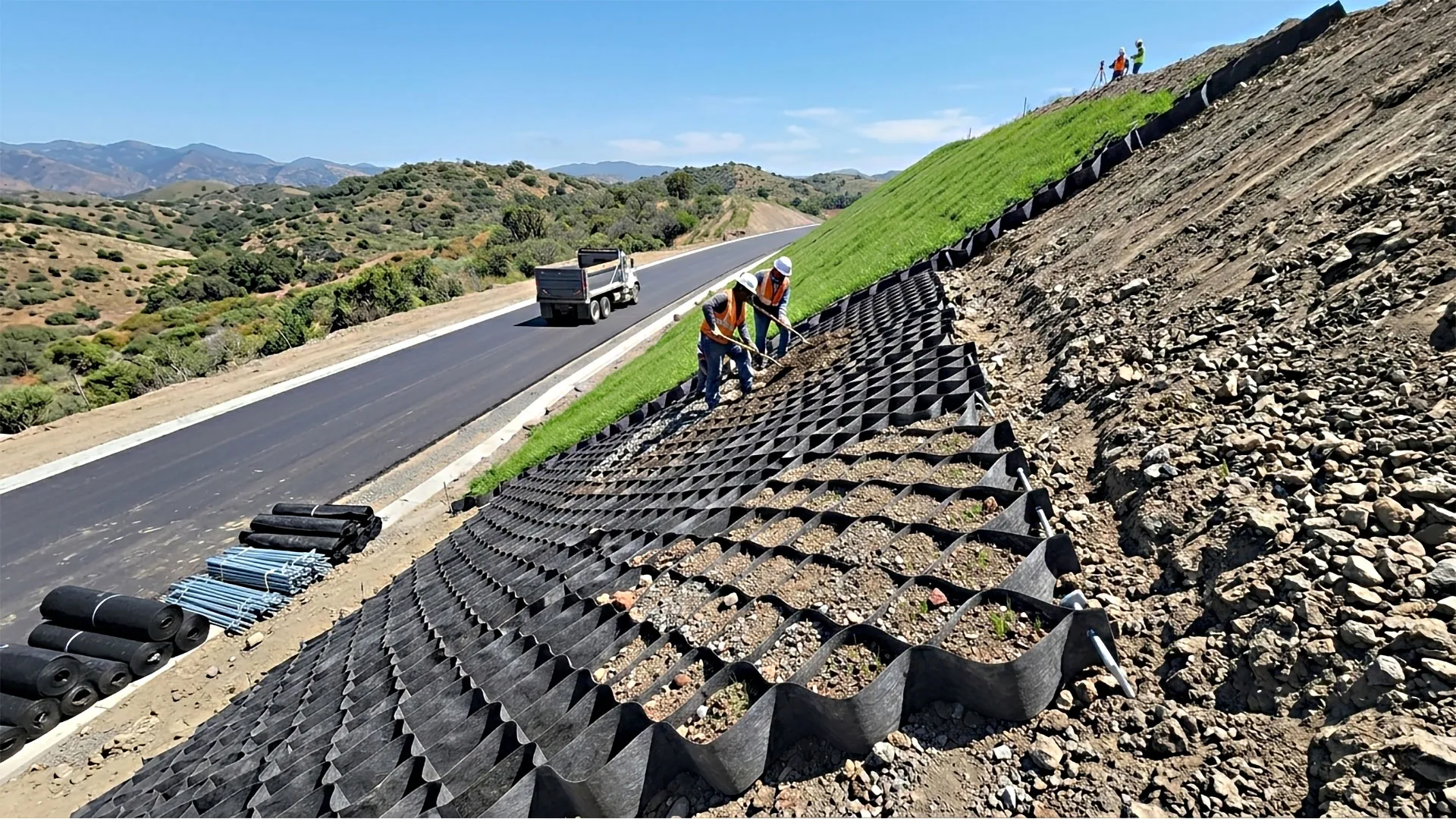

- Versatile Protection: Ideal for steep slopes, channel beds, and greening projects.
Technical Specifications: RM-NWFG Series Non-woven Geocell
| Specification Item | RM NWFG 25/100 | RM NWFG 35/100 | RM NWFG 25/150 | RM NWFG 35/150 |
|---|---|---|---|---|
| Material | High-Polymer Long Filament Non-woven Geotextile (PET/PP) | |||
| Cell Height (mm) | 100 mm | 150 mm | ||
| Nominal Weight (kg) | 11 kg | 17 kg | 17 kg | 25 kg |
| Dimensions (W x L) | 5.0 m x 7.0 m (Standard Roll Size) | |||
| Color | Industrial Grey | |||
| Core Functions | Filtration, Drainage, Isolation, Reinforcement, Seepage Control, and Protection | |||
