Fire-Retardant Containment Mesh
The Fire Retardant Mesh is our flagship safety solution, meticulously designed for
high-risk construction environments. Unlike standard meshes, this product integrates
advanced passive flame-retardant technology directly into the fiber matrix – while it
may be ignited under extreme conditions, it can automatically self-extinguish rapidly
without any active fire-suppression intervention.
Hdpe Geocell
Hdpe Geocell
★ 5.0 · 1 Reviews
Our next-generation Engineering-Grade Flame Retardant Safety Netting is meticulously designed for high-standard global construction and industrial infrastructure. Beyond being a simple physical barrier against falls, it represents an integrated safety solution combining ultra-high tensile strength with advanced self-extinguishing technology. Engineered with modified high-density polymers, our netting maintains structural integrity under extreme dynamic impacts and self-extinguishes within seconds of fire contact, providing a dual shield for high-value project assets and workforce lives. Rigorously tested for international weatherability and load-bearing standards, it is your premier choice for mitigating project risks and ensuring absolute site compliance.

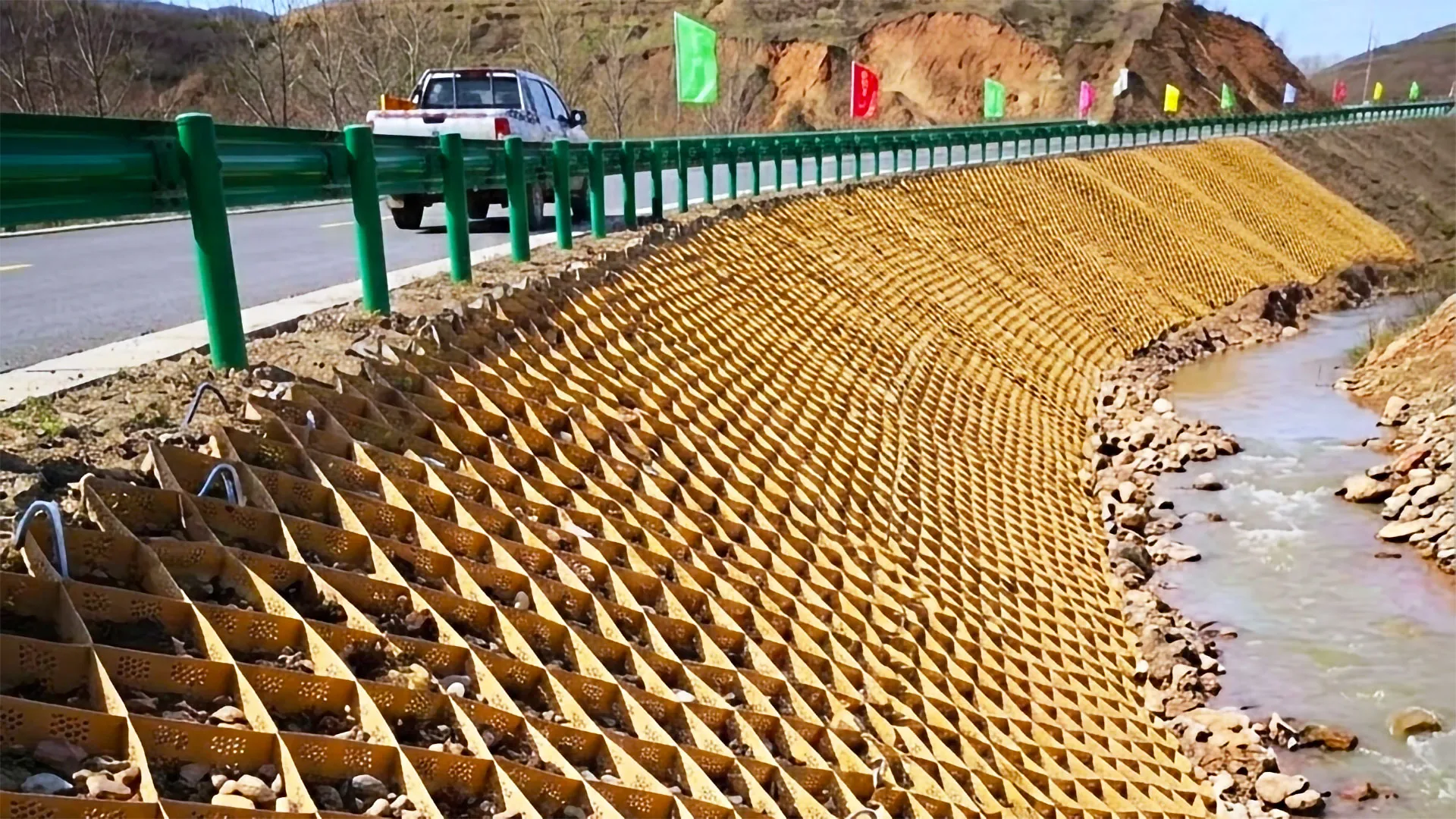

Advanced Subgrade Reinforcement & Confinement
Leveraging the three-dimensional confinement principle to transform loose filling materials into a unified, high-stiffness structural plate.
3D Confinement Principle
The honeycomb structure effectively limits the lateral movement of soil, gravel, or concrete infill.
- Structural Rigidity: Forms rigid or semi-elastic plates based on depth and hole type combination.
- Load Dispersion: Efficiently spreads vertical pressure to a wider area of the subgrade.
- Deformation Control: Prevents settlement and lateral extrusion of soft foundation layers.
Extreme Soil Stability
Engineered to perform in the most challenging terrains including permafrost and saline soils.
- Versatile Application: Ideal for deserts, marshes, mudflats, and collapsible loess roadbeds.
- Environmental Shield: Highly resistant to photo-oxygen aging, wear, and chemical corrosion.
- Seismic Performance: A flexible structure capable of absorbing and dispersing earthquake energy.
Superior Project Efficiency
Significantly reduces material usage and labor intensity compared to traditional methods.
- Reduced Thickness: Allows for thinner roadbeds without compromising load-bearing performance.
- Cost Savings: Lower project costs through reduced excavation and material transport.
- Accelerated Schedule: Fast deployment speeds up construction cycles in bridge-head and highway projects.

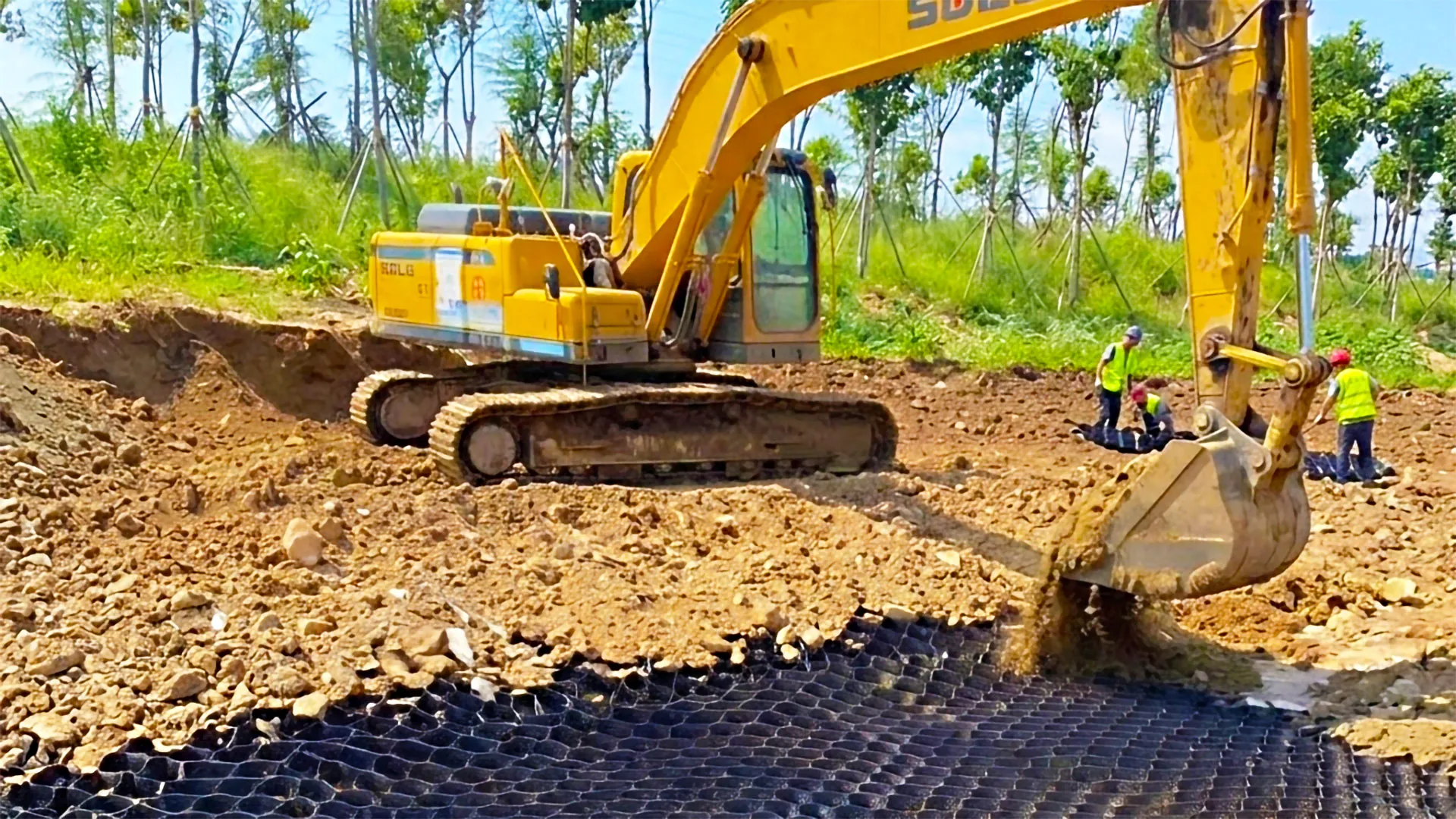

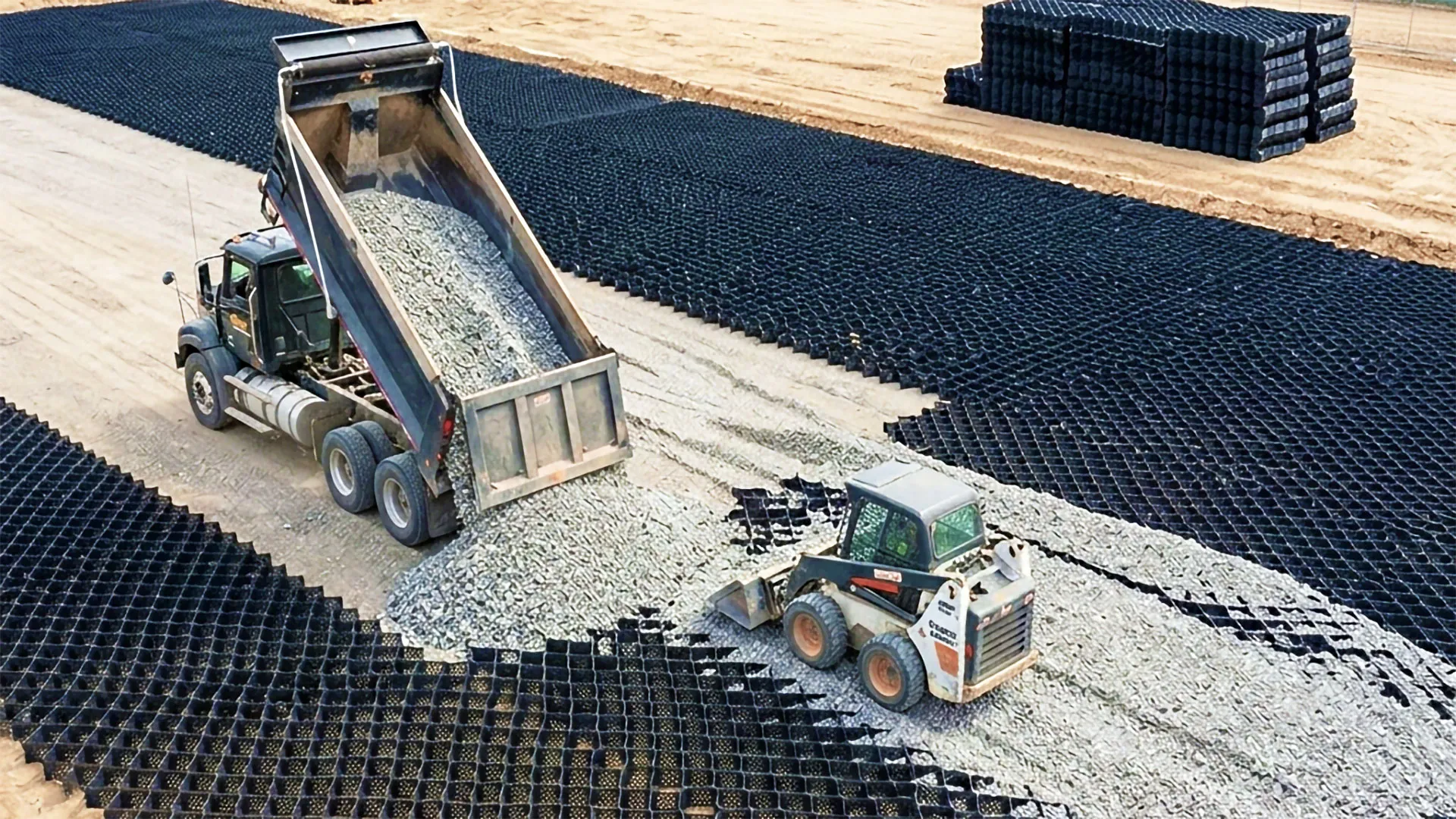

Flexible On-Site Logistics
Optimized for efficient global transport and rapid manual or mechanical setup.
- Collapsible Design: Foldable for compact storage and minimal shipping volume.
- Rapid Tensioning: Can be easily pulled into a mesh on-site for immediate filling.
- Customizable Configuration: Adaptable cell depths and weld spacings to meet specific project tensile needs.
Technical Specifications: RM HS-Series HDPE Geocell
| Specification Item | HS-5 | HS-8 | HS-10 | HS-15 | HS-20 |
|---|---|---|---|---|---|
| Material | Virgin High-Density Polyethylene (HDPE) - High-Frequency Welded | ||||
| Cell Height (mm) | 50 mm | 80 mm | 100 mm | 150 mm | 200 mm |
| Weld Spacing (mm) | 470 mm | 1000 mm | 1000 mm | 400 mm | 400 mm |
| Tensile Strength | ≥ 25 MPa (High-Strength Ultrasonic Welding) | ||||
| Chemical Resistance | Acid & Alkali Resistant, UV Stabilized, Anti-Oxygen Aging | ||||
| Available Colors | Standard Black, Forest Green, or Customizable | ||||

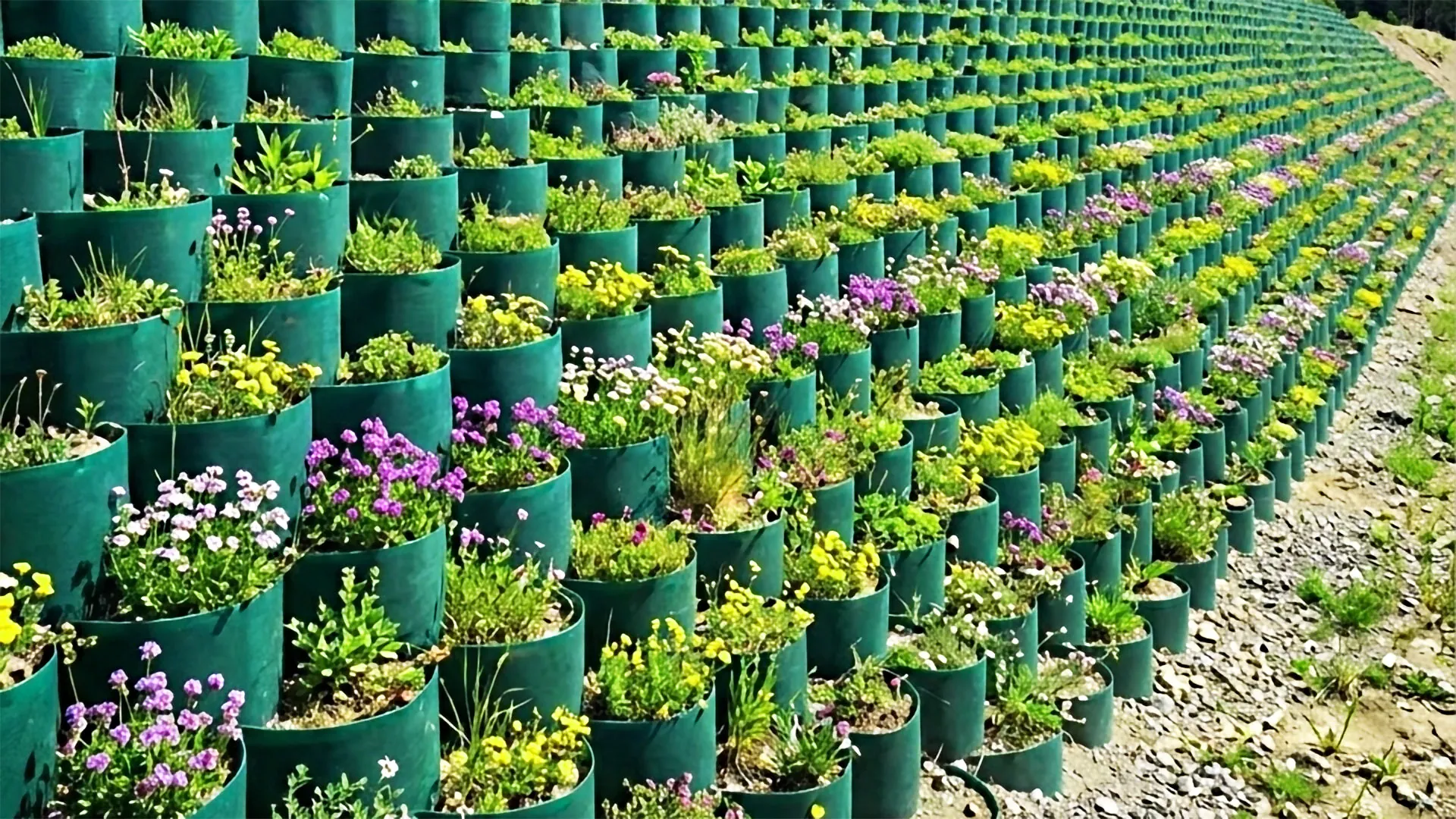

| Project Suitability | Soft Foundation Treatment, Slope Protection, Retaining Walls, and Deserts | ||||
Customer Reviews (Top 5)
Field performance feedback derived from global procurement managers and infrastructure contractors. These testimonials represent the typical performance standards and safety benchmarks achieved by Ruimin products in high-risk engineering environments.
★★★★★
Mike Houston · USA
We utilized HS-5 HDPE geocells for a major highway slope stabilization project. The ultrasonic welded joints are incredibly solid, showing no deformation even after prolonged exposure to high summer temperatures on-site. After filling, the bearing capacity significantly exceeded our design expectations. We completed the project well ahead of schedule and achieved substantial savings in labor costs. This now our go-to solution for infrastructure roadworks.
